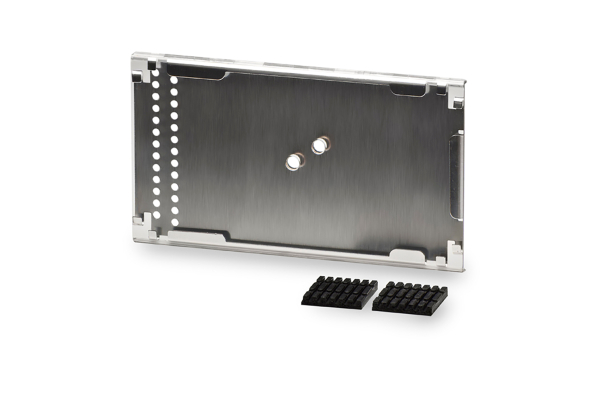

Wirewerks 12 position metal splice tray, plastic clear cover, SPL-MSPL6

Wirewerks offers splice trays for both wall-mount and rackmount enclosures. The trays are designed to provide maximum physical protection for fusion splicing, and they can be used with both loose tube and tight-buffered cable design. The metal trays consist of an aluminum bottom base and plexiglas cover for easy viewing of the splice. The proper size can prevent induced attenuation due to fiber bending. Wirewerks metal splice trays are designed to accommodate up to 24 splices. We also offer a stackable plastic splice tray with unique and flexible splice and storage system. It is designed to hold up to 12 fibers and can be mounted into most fiber optic panels using standard mounting screws. Each plastic tray is supplied with a cover to protect the splices and prevent them from becoming damaged or being misplaced.

• Splice trays are generally used in the Fiber-to-the Premises (FTTP) scenarios where storage of extra fiber is needed to provide easy access for splicing.
• Also used in Telecoms (Central Office); Cable TV and LAN, and external plant applications.

• Equipped with 2 mounting holes to provide flexibility to closure
• Aluminum bottom with Plexiglas top allows technician to view splices, preventing pinching with lid.
• Accommodate up to 24 splices. Available with splice chips for most types of splicing (i.e., bare fusion, mechanical, etc.).

• Slimline, stackable design allows higher splice density
• 12 fusion splices per tray
• Modular splice holder of six splices
• Minimum fiber bending radius maintained
• Ease of installation
