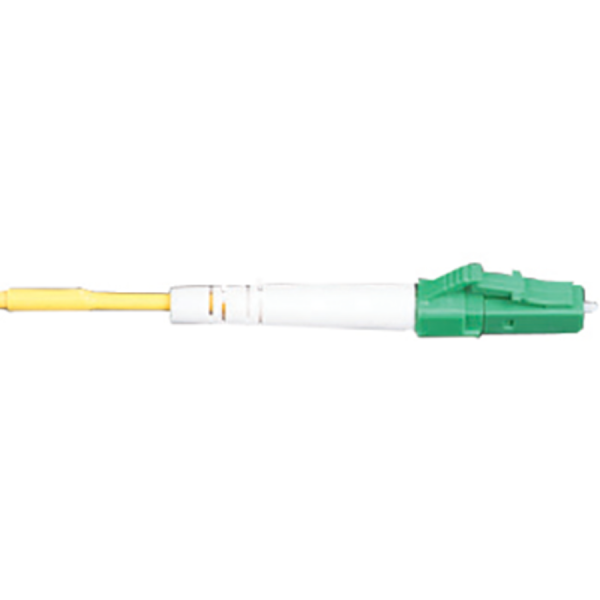

UCL Swift Splice On Connector, LC Simplex, Single Mode, APC, 900 micron, LCS-SM-APC-09

UCL Swift Splice On Connector, LC Simplex, Single Mode, APC, 900 micron, LCS-SM-APC-09

UCL Swift is a U.S. corporation owned by leading Korean splicer/PON/FTTx manufacturer Ilsintech Co.Ltd. Serving the industry since 2008, UCL Swift distributes a full line of products to the North American market. UCL Swift has developed and introduced various products for processing optical fibers, including, strippers, cleavers, multi pack, core alignment splicers, clad alignment splicers integrated with thermal auto stripper and cleaver, Fusion Splice-On Connector(FSOC) and many other related accessories.

Key Features:

• In accordance with IEC61754-20, TIA/EIA604-10-A
• Corresponding Telcordia GR-326-core
• Enhanced high quality with improved optical features (Insertion Loss & Return Loss)
• Enhanced & Improved high tensile strength (exceeding 60N).
• Satisfy Vertical Burning Test. Materials Compliant with UL94V-0
• Housing Color : SM-UPC(Blue), SM-APC(Green), MM(Beige)

Benefits:

• Factory installed fiber stubs using high-quality fiber provide verified performance
• Factory polished and inspected ferrule end faces ensure optimum fiber optic connectivity and easy termination
• Enhanced high tensile strength for improved field terminations
• FOCIS compliant connector interfaces
• Internal testing to verify performance and compliance with Telecordia GR-326 and EIA-568
• Ideal for use in high-density medium and long-range optical transmission circuits for FTTH, LAN, CATV, data center and passive optical LAN
• Swift 25-year warranty available

Applications:

• Medium and long-range optical transmission circuit, LAN, CATV, FA, OA
• PC transmission system, measuring tools, etc.
• FTTx Network

Specifications:
