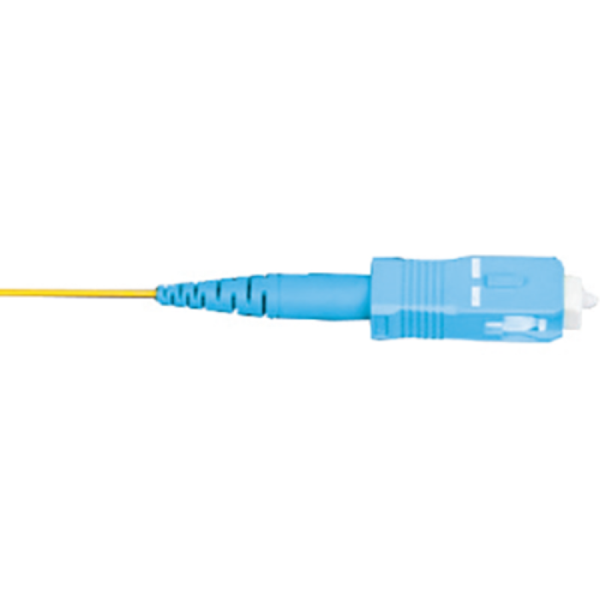

UCL Swift Single Mode, UPC, 900 micron Connector, SC-SM-UPC-09

UCL Swift Single Mode, UPC, 900 micron Connector, SC-SM-UPC-09

UCL Swift is a U.S. corporation owned by leading Korean splicer/PON/FTTx manufacturer Ilsintech Co.Ltd. Serving the industry since 2008, UCL Swift distributes a full line of products to the North American market. UCL Swift has developed and introduced various products for processing optical fibers, including, strippers, cleavers, multi pack, core alignment splicers, clad alignment splicers integrated with thermal auto stripper and cleaver, Fusion Splice-On Connector(FSOC) and many other related accessories.

Key Features:

• In accordance with IEC61754-4, KS C6974(F04), JIS C5973(F04)
• Telcordia GR-326-core certificated (Mar. 2012)
• Possible to directly splice with drop cable & Indoor cable
• Splice point is inside of Connector, no need for extra splice fixtures.
• Enhanced high quality with improved optical features (Insertion Loss & Return Loss)
• Enhanced & improved high Tensile Strength (exceeding 60N)
• Four parts can easily be assembled after splicing by one-touch push-pull system. (optionally tighten a screw)
• Satisfy Vertical Burning Test. Materials Compliant with UL94V-0

Benefits:

• Factory installed fiber stubs using high quality fiber provide superior optical performance
• Factory polished and inspected ferrule end faces ensure optimum fiber optic connectivity and easy terminations
• Enhanced tensile strength for improved field terminations
• FOCIS compliant connector interfaces
• Internal testing to verify performance and compliance with Telcordia GR-326 and EIA-568
• Ideal for use in FTTX networks, LAN, datacom and telecom applications including point to point and passive optical networking
• Swift 25-year warranty available

Applications:

• Medium and long range optical transmission circuit, LAN, CATV, FA, OA
• PC transmission system, measuring tools, etc.
• FTTx Network

Specifications:
