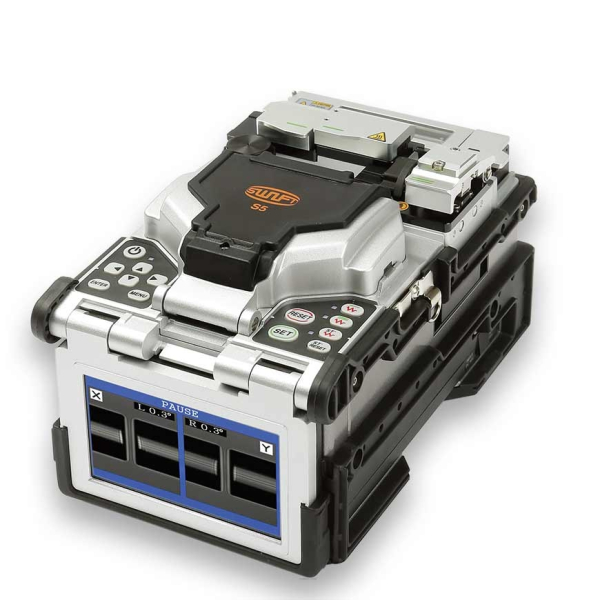

UCL Swift S5 All-in-one Core Alignment Fusion Splicer Kit
AvailabilityAvailable on Backorder
SKU
SWIFT-S5
UCL Swift S5 All-in-one Core Alignment Fusion Splicer Kit
Call For Price
Phone: 1-855-826-3781 | Email: quotes@nwsnext.com
America Ilsintech Swift S5 All-in-one Core Alignment Fusion Splicer Kit's simple and user-friendly design enables users to splice quickly and conveniently throughout the 5 processes; stripping, cleaning, cleaving, splicing & sleeving (All-in-One). The S5’s thermal automatic stripper leaves no scratches typical of a manual stripper that frequently scratches the fiber.
Key benefits and features:
- Integrated 5 function in one unit (stripping, cleaning, cleaving, splicing, protecting)
- The fusion splicer with All-In-One system provides the best workability on the pole and also in the limited workspace.
- No scratches on fiber by thermal stripping
- 4.3-inch Color LCD Monitor with Touch Screen & Bidirectional Operation System
- Powerful lithium polymer battery with large capacity
- More than 350 times for full cycling of splicing and sleeving when fully charged.
- Resistance to shock, dust and water
- The splicer with high reliability has stable performance even in a harsh environment.
| Shock – Free Fall : 76cm from 5 sides | Waterproof : IPx2 l Dustproof : IP5x
- The splicer with high reliability has stable performance even in a harsh environment.
- IPAAS Technology based Core Alignment
- Swift S5 is the core alignment splicer based on the IPAAS (Image Pattern Analysis Alignment System) Technology.
- Compatible with SWIFT Fusion Splice-On Connector (FSOC) in accordance with the Industrial Standard
- Bidirectional Operation System
- The monitor (touch screen) can be viewed bi-directionally for user’s preference.
- Auto-Calibration
- Detects the temperature, the humidity, the pressure automatically to calibrate the ARC discharge properly.
SPECIFICATIONS
| Category | Description |
| Fiber alignment | IPAAS core to core alignment(Image pattern analysis alignment system) |
| Applicable type of fibers | SM(ITU-T G.652 & G.657), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655) GI EDFA, EI980, Splicing available with different type fiber(SM/MM) |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 80 ~ 150?, Coating diameter: 100 ~ 1000? |
| Fiber setting and cleaved length | 250? : 8~16mm, 900? : 16mm(Application Holder: 8mm) |
| Splicing modes | Splice mode: 100, Heat mode: 50 |
| Typical Splice Loss | SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB |
| Return Loss | > 60dB |
| Splicing Time | Typical 9sec |
| Splice loss estimate | Available |
| Sleeve heating time | 28sec (Dual Sleeve Heating) |
| Applicable protection sleeve | 40mm, 60mm(fiber), 28mm or 32mm(connector) |
| Storage of splice result | The last 10,000 results to be stored in the internal memory.(Image 10,000 results) |
| Tension test | 2N / 4,4N(Option) |
| Operating condition | Altitude: 0~5,000m above sea level, Temperature: -10?~50?, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: -40?~80?, Humidity: 0~95% |
| Dimension | 142(W)x225(L)x132(H)mm(Including rubber) |
| Weight | 2.5kg(Including battery 3.2kg) |
| Viewing method and display | Two CMOS cameras and 4.3-inch color LCD monitor with touch screen |
| Fiber view and magnification | X or Y view: 300X, X and Y view: 300X, 187X (Zoom 700X) |
| Power supply | DC Lithium polymer battery(DC 14.8V, 8400mAh), 100~240V AC Adapter |
| No. of splice cycles with battery | 320cycle |
| Electrode life | More than 3,000 times |
| Terminals | USB, RCA, External Power(DC 12V Available for car cigar jack) |
| Manufacturer | UCL Swift |
|---|---|
| Fiber Product Group | Fusion Splicers |
| Tools Product Category | Splicers |
| Tools Product Type | Fusion Splicers |
| Fiber Capacity | Single fiber |
| Cleave Length | 8mm to 16mm |
| Splice Time | 9 secs |
| Length | 8mm to 16mm |
