RD Microwaves Wilkinson in-phase isolated 617 - 2700 MHz, SMA

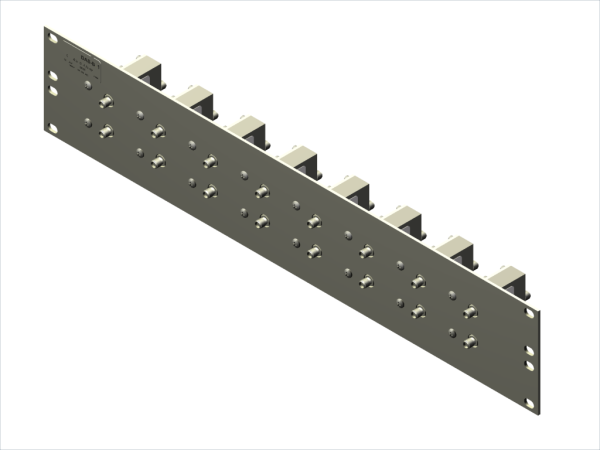

the Model DAS-B16 is a bank of 8 power dividers in a 19 inch 2 u rack, covering the frequency range of 698-2700 MHz. The power dividers are independent and isolated from each other, with 20 dB minimum isolation between outputs. The two 'output' connectors are on the front panel and the input connectors are on the rear..The unit is bidirectional for return loss but liimited to 30 Watts input power and 0.5 Watts when used as a combiner, functioning as a typical Wilkinson isolated low power divider.
