RD Microwaves Unequal dividers 450-550 MHz, N

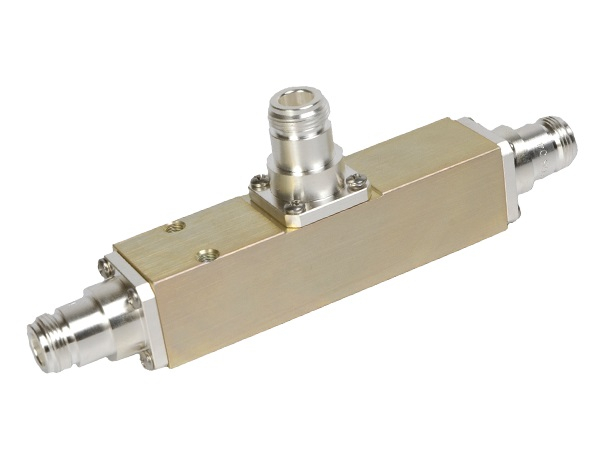

The RD Microwaves Model UD-A11-07 is an unequal Divider -Splitter, also commonly known as a "tap, tapper", or Reactive power divider.What separates the UD-A11 series from traditional tappers, is the unique DC pass on the coupled port. It operates over the frequency range of 450-550 MHz with a nominal 7dB coupling value and 4:1/6dB output split. The entire series of these coaxial airline capacitively coupled dividers are available in 1dB increments in various frequency ranges up to 6 GHz, with either Type N, 4.3-10, or DIN connectors in any combination.The units are bi-directional, have very good input VSWR with extremely low insertion loss and high power handling capability, no solder joints, and with very low PIM performance.Units are sealed for both indoor and outdoor applications. All units are 100% tested for PIM and actual data labeled on the unit, plus sweep testing with data on line.

Product Information:
Length: 5 In
Width: 5 In
Height: 5 In
Weight: 3 Lbs
