RD Microwaves Unequal dividers 380-2700 MHz, DIN, N, and 4.3-18

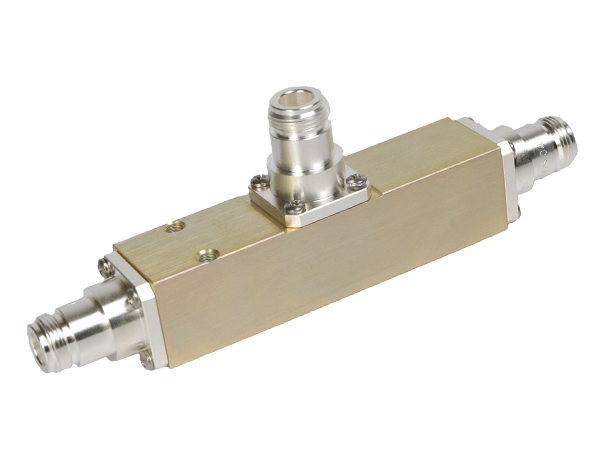

The RD Microwaves Model UD-13N is an unequal Divider -Splitter, also commonly known as a "tap, tapper", or Reactive power divider. It operates over the frequency range of 380-6000 MHz with a nominal 13dB coupling value and 19:1/13dB. The entire series of these coaxial airline capacitively coupled dividers are available in 1dB increments in various frequency ranges up to 6 GHz, with either Type N, 4.3-10 or DIN connectors in any combination.The units are bi-directional, have very good input VSWR with extremely low insertion loss and high power handling capability, no solder joints, and with very low PIM performance.Units are sealed for both indoor and outdoor applications

Product Information:
Length: 5 In
Width: 5 In
Height: 5 In
Weight: 3 Lbs

For More Information:
Detailed Specifications
