RD Microwaves Unequal dividers 100-800 MHz, N

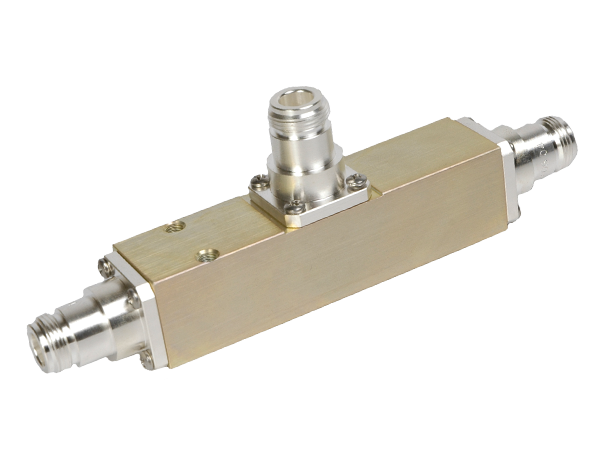

The RD Microwaves Model UD-A01 is an unequal Divider -Splitter, also commonly known as a "tap, tapper", or Reactive power divider. It operates over the frequency range of 100-800 MHz with a nominal 20dB coupling value. The entire series of these coaxial airline capacitively coupled dividers are available in 1dB increments in various frequency ranges up to 6 GHz, with either Type N , 4.3-10 or DIN connectors in any combination.The units are bi-directional, have very good input VSWR with extremely low insertion loss and high power handling capability, no solder joints, and with very low PIM performance.Units are sealed for both indoor and outdoor applications

Product Information:
Length: 5 In
Width: 5 In
Height: 5 In
Weight: 3 Lbs

For More Information:
Detailed Specifications
