RD Microwaves Stripline 824 - 1000 MHz / 1710 - 2170 MHz, DIN, N, and 4.3-10

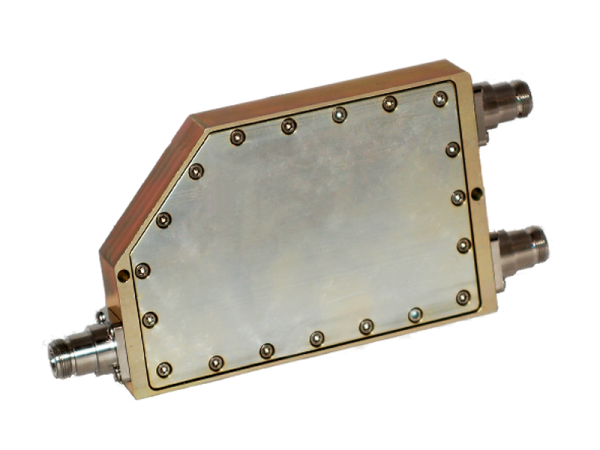

The RD Microwaves Diplexer-Filter Model DI-A09 is designed for applications that combine wireless local area networks into a common port, with low insertion loss and filtering between bands. It provides band separation of at least 50 dB with typical insertion loss of 0.2-0.3dB per channel. The DI-A09 Model covers the 824-1000MHz and 1710-2170 MHz bands with type N connectors and input power levels up to 250 Watts in the low band and 150 Watts in the high band.The unit is intended for both indoor or outdoor applications with low PIM performance.
