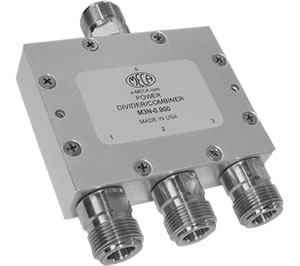

MECA M3N-0.900, N-F, 0.8-1.0 GHz

Description:
MECA's 3-way, M3N-0.900, M-Series N-Female power divider/combiner with an average power rating of 50 watts and frequency of 0.8-1.0 GHz.

Notes:
1. All units rated for 75 watts maximum input power as a divider or balanced combiner with load VSWR
     of 1.20:1 or better.To calculate the combining rated power the following formula is used:
     (rated input power of divider * 5%) / "N" # of input channels = max input at each port for combining
2. All output/power combiner ports are in-phase (0° difference).
3. 50 ohm nominal impedance standard.
4. Operating temperature from -55°C to +85°C.
5. See application note MAP-801
