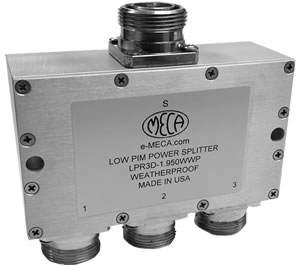

MECA LPR3D-1.950WWP, 120 Watts, DIN-F, 1.7-2.2 GHz
AvailabilityAvailable on Backorder
SKU
LPR3D-1.950WWP
MECA LPR3D-1.950WWP, 120 Watts, DIN-F, 1.7-2.2 GHz Power Divider Combiner
USD$259.00
Description:
MECA line of high-power capable (120 watts) low PIM power splitters covering all wireless frequencies from 1.7 - 2.2 GHz. Available in 3-way configurations fitted with 7/16 DIN-Female connectors at all ports. Indoor or Outdoor use (IP67).
Notes:
1. With 2 X 20 Watt tones
2. All units rated for maximum power with load VSWR of 1.20:1 or better.
3. All output/power combiner ports are in-phase (0° difference).
4. 50 ohm nominal impedance standard.
5. Operating temperature from -55°C to +85°C.
| Manufacturer | MECA Electronics |
|---|---|
| Coaxial Component Connector Type | 7/16 DIN F |
| Coaxial Component Type | 3-way |
| Frequency | 1.7-2.2 GHz |
| Average Power | 120w |
| Low PIM | Yes |
| Divider Type | Power Dividers |
