MECA H705N-0.900, N-F, 0.8-1 GHz Directional Coupler) Directional Coupler)

Description:

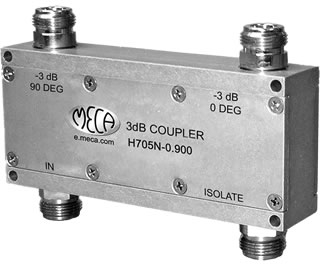

MECA’s H705N-0.900 3 dB 90° hybrid coupler features a frequency range of 0.800 - 1.000 GHz, power rating of 500 watts (10K watts peak). These units are equipped with N-Female connectors and a rugged aluminum housing coated with a clear iridite finish for long lasting, reliable performance. Made in USA and offer low insertion loss and excellent VSWR. Whether you are designing a duplexer, combining amplifiers or just need a 90° phase shift with high isolation to avoid mixing signals, then MECA’s 705 series will help you achieve your objectives.

Notes:
1. 705 Series has a peak power rating of 3 kW, H705N Series is rated at 10 kW.
2. 50 ohm nominal impedance standard.
3. Operating temperature range is -55°C to +85°C.
