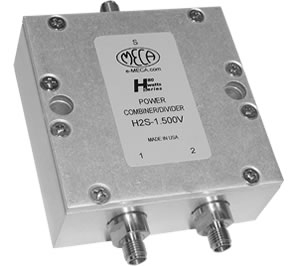

MECA H2S-1.500V, SMA-F, 0.8-2.2 GHz

Description:
MECA's 2-way, H2S-1.500V, SMA-Female power divider/combiner with an average power rating of 80 watts and frequency of 0.8-2.2 GHz.

Notes:
1. MECA's power combiner series is designed to provide continuous full-rated power when a method of heat transfer which keeps the case temperature at or below +85°C (i.e. additional heat sinking and/or cooling fan is utilized).
2. Operating temperature from -55°C to +85°C.
3. Port S power rating is maximum input as power divider with load VSWR of 2.0:1 or better.
4. All output/power combiner ports are in-phase (0° difference).
5. 50 ohm nominal impedance standard.
6. Maximum case termperature 85°C
