AvailabilityAvailable on Backorder
SKU
CS-6.000

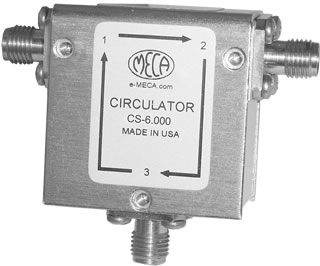

Circulator, SMA-F, 2w, 4 - 8 GHz
USD$637.57
Description:
RF circulator is a three-port passive device used to control the direction of signal flow in a circuit. MECA offers the CS-6.000 circulator with SMA-Female connectors with average power rating of 2 watts, and a frequency range of 4.0 - 8.0 GHz is readily available and can ship from STOCK to 4 weeks after receipt of your order. IP 67 compliant circulators available.
Notes:
1. Circulator power rated into a load mismatch of 1.05:1 all phase angles.
2. Additional frequency ranges available, please consult with factory for specific ranges.
3. Heat sink temperature must not exceed the maximum operating temperature specified.
4. 50 ohms nominal impedance is standard.
Manufacturer | MECA Electronics |
---|---|
Connector Gender | F |
Connector Series | SMA |
Max Power Input (Watts) | 2w |
Frequency | 4-8 GHz |
