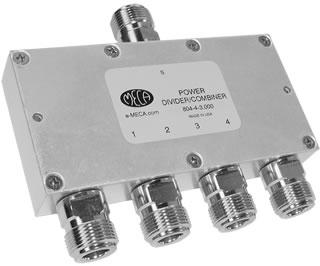

MECA 804-4-3.000, N-F, 2.0-4.0 GHz

Description:
MECA's 4-way, 804-4-3.000, N-Female power divider/combiner with an average power rating of 10 watts and frequency of 2.0-4.0 GHz.

Notes:
1. Insertion loss above 6.02 dB theoretical 4-way power divider split.
2. All units rated for maximum input power as a divider or balanced combiner with load
    VSWR of 1.20:1 or better. To calculate the combining rated power the following formula is used:
    (rated input power of divider * 5%) / "N" # of input channels = max input at each port for combining.
3. All output/power combiner ports are in-phase (0° difference).
4. 50 ohm nominal impedance standard.
5. Operating temperature from -55°C to +70°C.
6. See application note MAP-801
