MECA 802-8-1.700V, BNC-F, 0.698-2.7 GHz

Description:

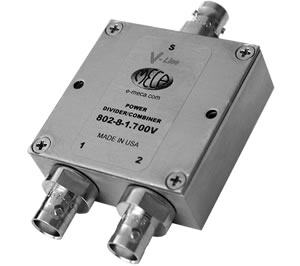

MECA's 2-way, 802-8-1.700V, BNC-Female power divider/combiner with an average power rating of 40 watts and frequency of 0.698-2.7 GHz.

Notes:
1. All units rated for maximum input power as a divider or balanced combiner with load
    VSWR of 1.20:1 or better. To calculate the combining rated power the following formula is used:
    (rated input power of divider * 5%) / "N" # of input channels = max input at each port for combining.
2. All output/power combiner ports are in-phase (0° difference).
3. 50 ohm nominal impedance standard.
4. Operating temperature from -55°C to +85°C.
5. See application note MAP-801
