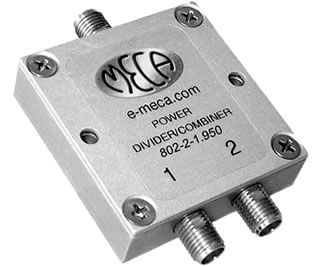

MECA 802-2-1.950, SMA-F, 1.7-2.6 GHz

Description:
MECA's 2-way, 802-2-1.950, SMA-Female power divider/combiner with an average power rating of 20 watts and frequency of 1.7-2.6 GHz.

Notes:
1. Insertion loss above 3.01 dB theoretical 2-way power divider split.
2. All units rated for maximum input power as a divider or balanced combiner with load
    VSWR of 1.20:1 or better. To calculate the combining rated power the following formula is used:
    (rated input power of divider * 5%) / "N" # of input channels = max input at each port for combining.
3. All output/power combiner ports are in-phase (0° difference).
4. 50 ohm nominal impedance standard.
5. Operating temperature from -55°C to +85°C.
6. See application note MAP-801
