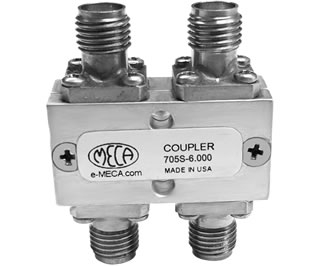

MECA 705S-6.000, SMA-F, 4-8 GHz Directional Coupler) Directional Coupler)

Description:
MECA’s 705S-6.000 3 dB 90° hybrid coupler features a frequency range of 4.000 - 8.000 GHz, power rating of 50 watts (3K watts peak). These units are equipped with N-Female connectors and a rugged aluminum housing coated with a clear iridite finish for long lasting, reliable performance. Made in USA and offer low insertion loss and excellent VSWR. Whether you are designing a duplexer, combining amplifiers or just need a 90° phase shift with high isolation to avoid mixing signals, then MECA’s 705 series will help you achieve your objectives.

Notes:
1. Coupling Loss Includes Insertion Loss and Frequency Sensitivity.
2. 705 Series has a peak power rating of 3 kW, H705N Series is rated at 10 kW.
3. 50 ohm nominal impedance standard.
4. Operating temperature range is -55°C to +85°C.
