MECA 705S-1.700V, SMA-F, 0.698-2.7 GHz Directional Coupler) Directional Coupler)

Description:

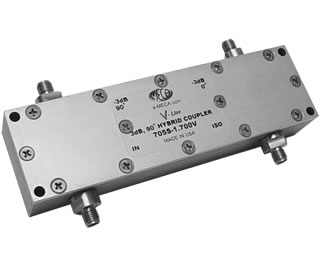

MECA’s V-Line 705S-1.700V 3 dB 90° hybrid coupler features a frequency range of 0.698 - 2.700 GHz, power rating of 100 watts (2.5K watts peak). These units are equipped with N-Female connectors and a rugged aluminum housing coated with a clear iridite finish for long lasting, reliable performance. Made in USA and offer low insertion loss and excellent VSWR. Whether you are designing a duplexer, combining amplifiers or just need a 90° phase shift with high isolation to avoid mixing signals, then MECA’s 705 series will help you achieve your objectives.

Notes:
1. 705 Series has a peak power rating of 3 kW, H705N Series is rated at 10 kW.
2. 50 ohm nominal impedance standard.
3. Operating temperature range is -55°C to +85°C.
