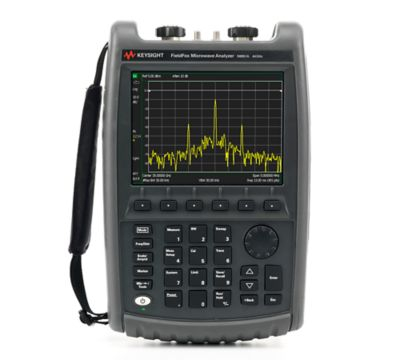

Keysight N9951A FieldFox Handheld Microwave Analyzer, 44 GHz

Maximum Frequency

44 GHz

Minimum Frequency

300 kHz

SA Start Frequency

5 kHz

System Dynamic Range

110 dB

Best Speed at 1001 Point, 1 Sweep

478 us/pt

Output Power

4 dBm

Trace Noise

0.004 dB

Number of Built-In Ports

2 ports

Instrument Type

Combination Analyzer

Cable and Antenna Analyzer

Yes - Standard

Spectrum Analyzer

Yes - Optional

Vector Network Analyzer

Yes - Optional

Additional CAT/VNA Based Features

• Vector Voltmeter
• Mixed-Mode S-Parameters
• DTF/TDR Cable Measurements

Additional SA Based Features

• Built-In Power Meter
• Extended Range Transmission Analysis (ERTA)
• Real-Time Spectrum Analysis
• Noise Figure Measurements
• Over-The-Air Measurements

System Features

• Built-In DC Source
• GPS Receiver - Internal Only
• Remote Control Capability

Power Measurement Using USB Sensor

• CW or Swept-Frequency
• Frequency-Offset
• RF Pulse Test with Peak Sensor

Standard Attenuator Range

30 dB

Standard Attenuator Step

5 dB

DANL @1 GHz

-159 dBm

Maximum Analysis Bandwidth

10 MHz

Phase Noise @1 GHz (1 MHz offset)

-113 dBc/Hz

Phase Noise @1 GHz (10 kHz offset)

-111 dBc/Hz

Phase Noise @1 GHz (30 kHz offset)

-108 dBc/Hz

Spur Free Dynamic Range

> 104 dB

TOI @1 GHz (3rd Order Intercept)

+13 dBm

Applications Available

Yes

Maximum Real-Time Bandwidth

10 MHz

Bandwidth Options

10 MHz (standard)

Performance Level

◆◆◆◇◇◇

Applications-Cellular

• 89600 VSA Software
• Over-The-Air LTE FDD and 5GTF

Applications-Digital Video

89600 VSA Software

Applications-General Purpose

• AM/FM Tune and Listen
• Field Strength Measurement
• SCPI Code Compatibility
• Spectrogram
• Stimulus Response

Applications-Wireless Connectivity

89600 VSA Software
