Consultix 5G CW Receiver
AvailabilityAvailable on Backorder
SKU
Consultix-5G-D

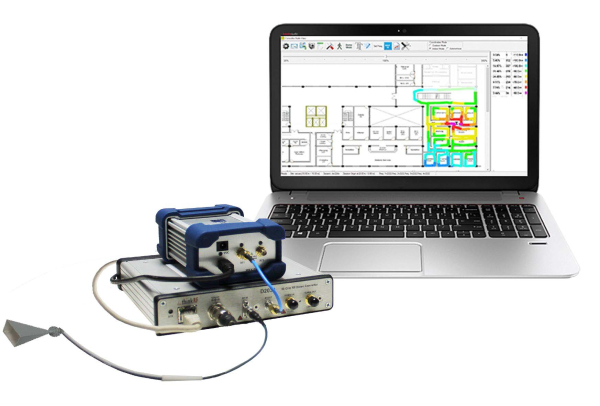

Consultix 5G CW Receiver
CW Walk-test Receiver; 27 GHz to 30 GHz, -120 to -40 dBm range.
Including:
- MRX-35-D4
- mm-wave module
- 2* AC/DC adapter
- USB cable
- Ethernet cable
- user manual
- calibration certificate
- hard carrying case.
USD$19,260.00
Consultix 5G CW Receiver
Download the Consultix 5G CW Receiver Data Sheet
5G networks are all about enabling ultra-broadband, massive connectivity, ultra-low latency, so building a strong RF infrastructure is a key prerequisite. As RF infrastructure lays the foundation of every wireless network and if done right, every coming phase is a whole lot easier.
Consultix-5G family comprises comprehensive portfolio of RF equipment that brings simplicity and affordability to mmWave test scenarios pertinent to 5G applications.
The family’s 5G receivers feature superior RF performance at 28 GHz band. And its portability makes mmWave field testing as easy as low GHz to quickly make users fit in the realm of 5G.
The sensitivity is deep enough to fulfill dynamic range requirements. And with the Walk-view software, it’s a lot easier now to plot and export measurements for further processing.
Consultix-5G receivers are available in two different flavors to meet different users’ requirements either for walk-test or drive-test missions.
Superior RF
- Frequency Range: 27 to 30 GHz
- Amplitude Accuracy: ±1dB
- -120 dBm Sensitivity
- 1.5ppm Frequency Accuracy
WalkView Software
- Supports Wide Range of Maps and Floor-Plan Formats
- Compatibility with IBwave, Ranplan, MapInfo, Asset, etc.
- Indoor and Outdoor Modes with GPS Support
| Manufacturer | Consultix |
|---|---|
| Frequency | 27 kHz - 30 GHz |
