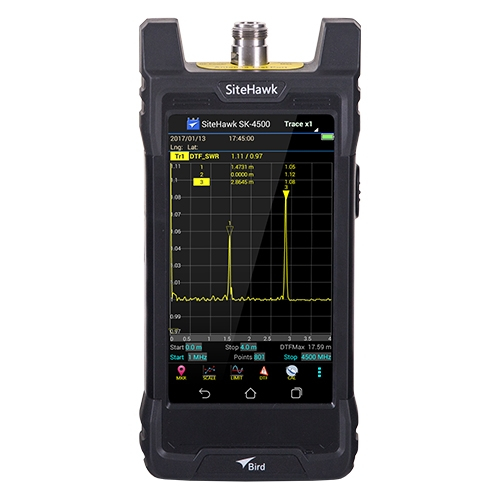

BIRD SK-4500-TC SiteHawk, Antenna and Cable Analyzer

BIRD SK-4500-TC SiteHawk, Antenna and Cable Analyzer.

PRODUCT FEATURES
• Test RF cables and antennas at the frequency of operation.
• Locate RF cable, connector and antenna problems at the source.
• FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system; ultimately providing a “heads-up” before a failure occurs.
• Fault location or DTF mode plots VSWR or Return Loss levels at each distance point along the cable and antenna system length.
• Cable Loss function measures insertion loss of the cable system over a given frequency range.
• OTG USB communication port for connection to Bird power sensors, storage devices and battery charging.

General Specifications
Frequency Range	1 MHz - 4500 MHz
Frequency Accuracy	±2.5x10-6
Frequency Resolution	1 kHz
Output power	-10dBm
Reflect Amplitude Accuracy	Please see Data Sheet
Measure Bandwidth	100 Hz to 30kHz
Test Port Connector Impedance	N-type, Female 50 ohms
Connector	USB Type-C, USB 3.0
Dimension (LxWxH)	7.7 x 3.6 x 2.4 (in)
Maximum Input Voltage	50 V
Operation Temperature	14°F TO 131°F (-10°C to +55°C)
Weight	1.98 lbs
