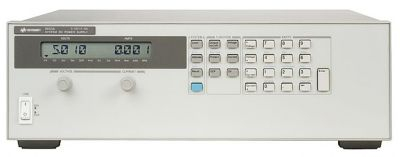

6651A DC Power Supply, 0-8V, 0-50A, 400W

The single output, 6650 Series 500 W high performance programmable DC power supplies offer low noise, accurate outputs; analog control of output voltage and current; fan-speed control to minimize acoustic noise, and advanced features to protect your device under test. The 6651A is a 400 W single output programmable DC power supply with a GPIB interface.

* Output current is specified at 40ºC and is de-rated to 45 A at 50ºC, 42.5 A at 55ºC.

Notice for European Union Customers: This product is not updated to be EU RoHS compliant. Please contact Keysight Authorized Distributors for quotation and ordering. Keysight will continue service and support to the end of worldwide support life.

DC Output Ratings

• Voltage: 0 to 8 V
• Current: 0 to 50 A *
• Power: 400 W maximum

Programming Accuracy at 25°C ±5°C

• Voltage programming accuracy: 0.06% + 5 mV
• +Current measurement (readback) accuracy: 0.15% + 67 mA

Ripple & Noise from 20 Hz to 20 MHz

• Voltage rms: 300 µV
• Peak-to-Peak: 3 mV
• Current rms: 25 mA

High Performance, Single Output, Programmable DC Power Supply

• Up-programming and down-programming time is less than 15 ms
• Over voltage, over current, and over temperature protection for your device under test
• GPIB interface
