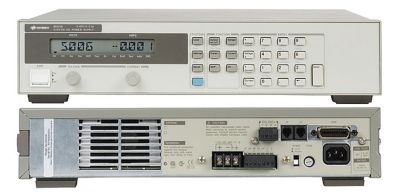

6641A DC Power Supply, 0-8 V, 0-20 A, 160 W, GPIB

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 200 W, GPIB 6641A-6645A provide fast, low-noise outputs; analog control of output voltage and current; fan-speed control to minimize acoustic noise; as well as parallel and series connections of multiple units.

The Keysight 160W, GPIB, single output 6641A is a versatile programmable supply designed to maximize test throughput during design verification or on the production line, and is fully programmable to help reduce test time through a variety of automated capabilities.

Notice for European Union Customers: This product is no longer available due to lack of compliance with EU RoHS directive 2011/65/EU. Please contact Keysight Authorized Distributors for quotation and ordering. Keysight will continue service and support to the end of worldwide support life.

Output Ratings

• Output voltage: 0 to 8 V
• Output current (40° C): 0 to 20 A
• Maximum current (50° C/55° C): 18 A/17 A

Programming Accuracy at 25°C ±5°C

• Voltage 0.06% + 5 mV
• Current 0.15% + 26 mA

Ripple & Noise (20 Hz - 20 MHz)

• Voltage rms: 300 µV
• Voltage peak-to-peak: 3 mV
• Current rms: 10 mA
