66105A DC Power Module, 120V, 1.25A

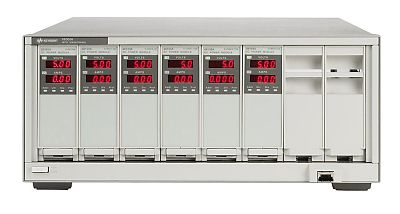

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The modular power system, 1200 W per mainframe, GPIB 66100 series permits up to 8 outputs of 150 W per output in 4U of rack space; reconfigure fast with easily swappable modules; fast, low-noise outputs; and LIST mode and advance triggering system.

The Keysight 150W, GPIB, module output 66105A is a flexible modular supply designed for automated testing that helps meet changing requirements in ATE and production test with a modular design that conserves rack space and simplifies system cabling and assembly.

Notice for European Union Customers: This product is no longer available due to lack of compliance with EU RoHS directive 2011/65/EU. Please contact Keysight Authorized Distributors for quotation and ordering. Keysight will continue service and support to the end of worldwide support life.

Output ratings

• Output voltage: 0 to 120 V
• Output current: 0 to 1.25 A
• Maximum power: 150 W

Programming accuracy at 25°C ±5°C

• Voltage 0.03% + 54 mV
• Current 0.03% + 0.6 mA

Ripple & noise (20 Hz to 20 MHz)

• Voltage rms: 18 mV
• Voltage Peak-to-Peak: 25 mV
• Current rms: 1 mA
