SureCall Fusion5X Signal Booster for Large Buildings, SC-PolyXH/O-72

AvailabilityAvailable on Backorder
SKU
SC-PolyXH/O-72
SureCall Fusion5X Signal Booster for Large Buildings, SC-PolyXH/O-72 72dB five-band booster for areas up to 20,000 sq. ft. Automatic dB gain/attenuation optimizes booster performance without dials
USD$717.60

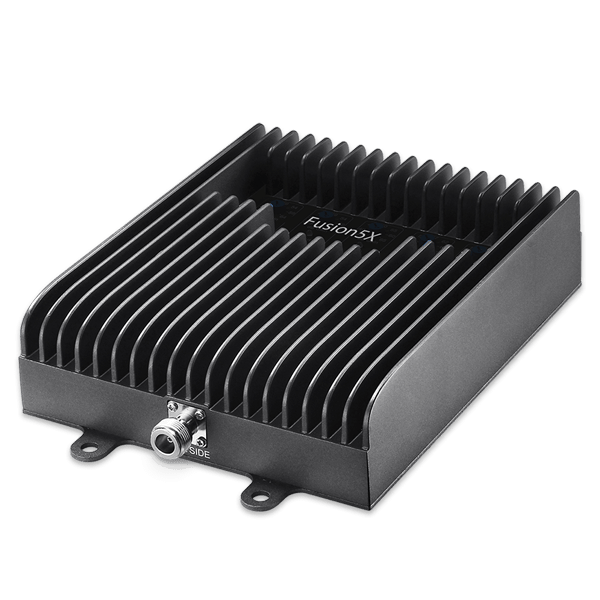

SureCall Fusion5X Signal Booster for Large Buildings, SC-PolyXH/O-72

Designed for buildings up to 20,000 sq ft- the SureCall Fusion5X™ increases voice, text and 4G LTE signals for all major cell carriers in Canada. Configurable for all indoor environments, the Fusion5X reduces dropped & missed calls and improves 4G LTE data speeds to ensure everyone has a reliable connection to their mobile device.

Fusion5X doesn't feature attenuation knobs, instead, sophisticated software automatically and continually optimizes gain ensuring the booster is always operating at maximum performance. The Fusion5X booster features sturdy metal construction and an industry leading 3-year warranty.

  • Boosts voice, text and 4G LTE signals for all Canadian cell carriers
  • Reduces dropped & missed calls

  • Increases signal strength & extends battery life for all cellular devices

  • Coverage for large buildings, up to 20,000 Sq Ft

  • Maximum gain, uplink and downlink power

  • Automatic dB gain/attenuation optimizes booster performance without dials

Product Specifications

Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Input/Output Impedance: 50 Ohm
Maximum Gain: 72 dB
Noise Figure: 8 dB
VSWR: ≤2.0
AC Input: Input AC 110 V, 60 Hz / Output DC 12 V
Maximum Output Power: 1 Watt EIRP
Downlink Power: 10 dBm
Cable: SC-400
RF Connectors: N-Female (both ends)
Power Consumption: <25W
Dimensions: 9.25" x 6.375" x 1.375"
Weight: 4 lb. 4 oz.
More Information
Manufacturer SureCall
Antenna Product Group Signal Boosters
Coverage Range 20,000 sq. ft
