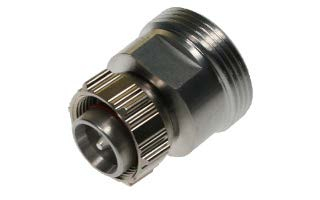

RFS Adapter 7/16 DIN F to 4.3-10 Male. 716F-43M
AvailabilityAvailable on Backorder
SKU
716F-43M
RFS Adapter 7/16 DIN F to 4.3-10 Male. 716F-43M
USD$65.77
RFS Adapter 7-16 DIN Female to 4.3-10 Male
Technical Features
STRUCTURE
Product Line | Coaxial Cable Components |
Product Type | Coaxial Adapter |
Coaxial Cable Type | Foam Dielectric, Ultraflexible Foam Dielectric , Radiating Cable |
MECHANICAL SPECIFICATIONS
Connector A | 7-16 DIN Female |
Center Contact Connector A | Copper Alloy, Silver plated |
Outer Contact Connector A | Copper Alloy, CuSnZn plated |
Connector B | 4.3-10 Male |
Center Contact Connector B | Copper Alloy, Silver plated |
Outer Contact Connector B | Copper Alloy, CuSnZn plated |
Body | Copper Alloy, Bright Nickel plated |
Dielectric | PTFE |
Gasket | Silicone rubber |
Sealing class | IP68, connected |
ELECTRICAL SPECIFICATIONS
Frequency Range | MHz | DC - 6000 |
VSWR, Return Loss | VSWR (dB) | DC - 2000 MHz: 1.02 (40.08) 2000 - 3000 MHz: 1.04 (34.15) 3000 - 6000 MHz: 1.08 (28.3) |
Insertion Loss (Max) | dB | |
3rd Order IM Product @ 2x20 Watts | dBc | < -165 |
TEMPERATURE SPECIFICATIONS
Operation Temperature | °C (°F) | -45 to 85 (-49 to 185) |
PACKAGING INFORMATION
Package Quantity | 1 |
| Manufacturer | RFS |
|---|---|
| Cable Connector 1 | 7/16 DIN |
| Connector 1 Gender | F |
| Cable Connector 2 | 4.3/10 |
| Connector 2 Gender | M |
