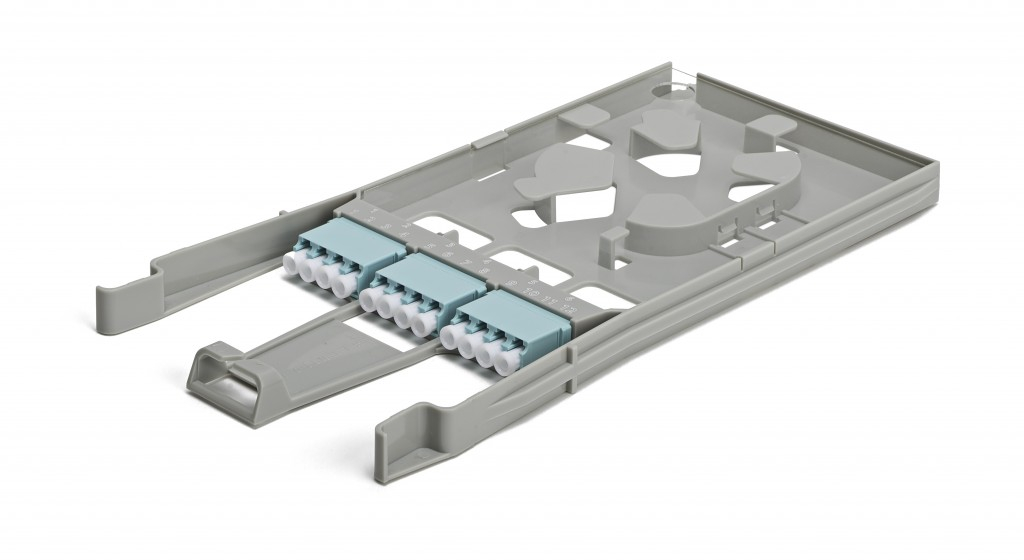

The NextSTEP patch module is the interconnect that brings fiber optic assemblies and active equipment together. It can accommodate for standard LC and SC connectors and has a fiber capacity of 12 fiber interconnections per module.
Each module exhibits port numbering on the top side along with fully integrated selfcontained fiber management – facilitating MACs and reducing install time.
Made of durable, high-impact ABS plastic, the Wirewerks™ NextSTEP Patch Modules snap easily into position with a fluid and robust sliding mechanism and are compatible with all Wirewerks NextSTEP housings.
Specs
• Patch Module: material UL 94V-0 High-Impact ABS Thermoplastic
• Overall dimensions: 9.1 in (231mm) x 4.3 in (109mm) x 0.5 in (13mm)
• Operating temperature: -40° C (-40° F) ~ 75° C (167° F)
• Storage temperature: -40°C (-40°F) ~ 85°C (185°F)
• Temperature cycling: -40° C (-40° F) ~ 75° C (167° F), 40 cycles = 0.2 dB change
• High temperature: 70° C for 96 hours = <0.4 dB change
• Mating durability: 500 mating cycles (cleaning every 25 matings) = <0.2dB change
• Storage temperature: 40° C (104° F) at 93% RH for 96 hours = <0.4 dB change
| Manufacturer | Wirewerks |
|---|---|
| Fiber Product Group | Fiber Patch Modules |
| Fiber Capacity | 12 |
| Connector Type | OM1/OM2 LC |
| Product Series | NextSTEP |
| Side A | Wirewerks NextSTEP 12F PATCH MODULE |
| Technology | NextSTEP |
