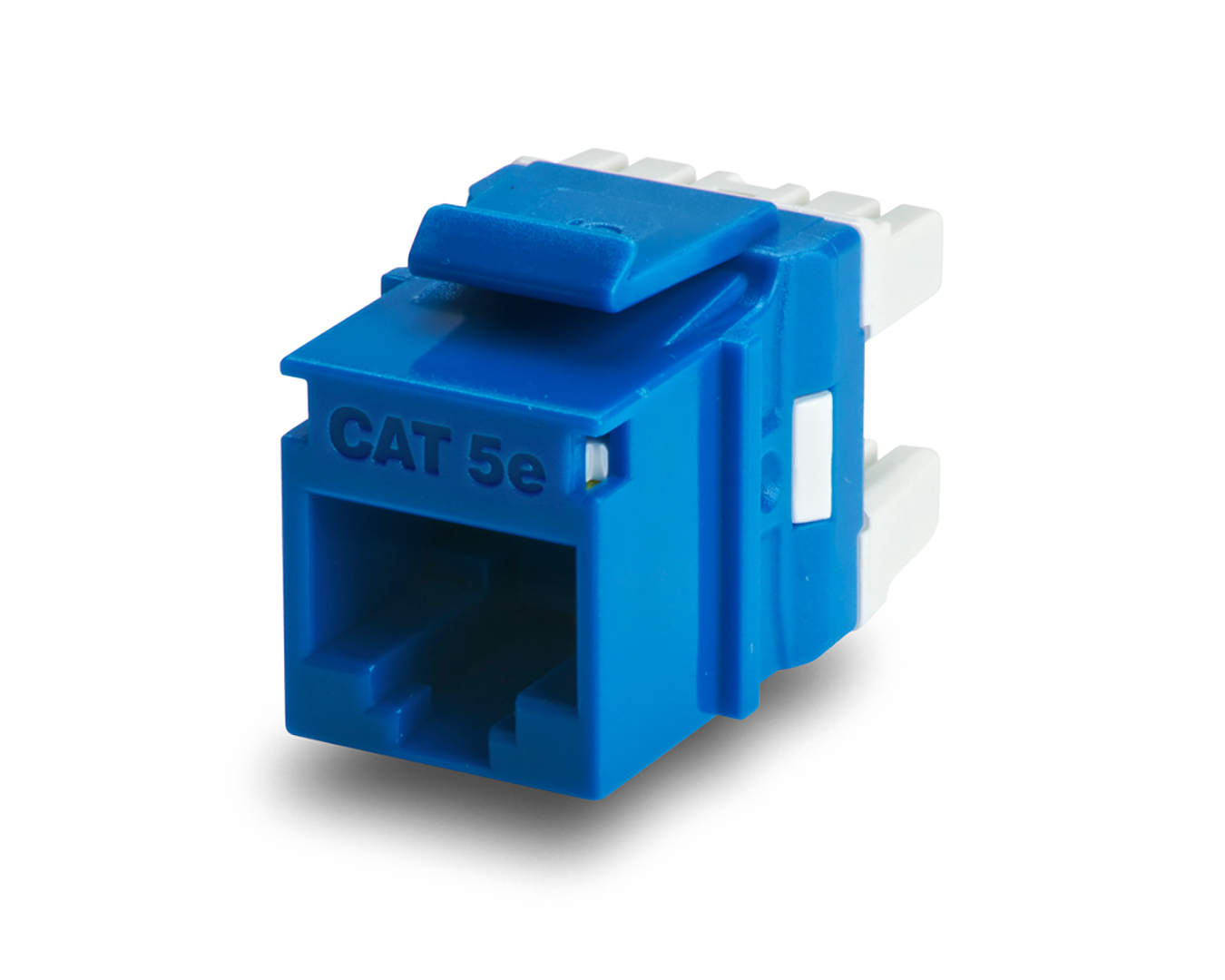

Wirewerks CAT5E RJ45 KEYWERKS MODULE, BACK TERMINATION, BLUE, KW-C5E45BBL

Wirewerks CAT5E RJ45 KEYWERKS MODULE, BACK TERMINATION, BLUE, KW-C5E45BBL

The RJ-45 Keywerks Cat 5e module is a punch down UTP connector that complies with TIA/EIA-568-C.2 standard. The back of the module is an IDC termination interface offering two wiring schemes: T568A & T568B. The modules are compatible with the Keywerks product family: Patch Panels, Faceplates and Surface Mount or any other keystone products.

FEATURES AND BENEFITS

Color-coded termination for T568A/B wiring schemes.
Clear protective wire cap allowing security during wire management.
Universal IDC termination interface
Available in six colors to facilitate network management.
Compatible with Keywerks Patch Panels, Faceplates & Surface Mount or any other keystone products
Product comes with installation guide

APPLICATIONS

Data Centers
Telecommunication or Equipment Room
Inter-connect or cross-connect termination
Consolidation Points
Work Area

TECHNICAL SPECS

• Material: ABS Thermoplastic
• 8 contact connector
• Accept 6 & 8 position modular plug
• Up to 750 mating cycles
• Contact material: copper alloy with 50 micro-inches gold over 100 micro-inches of nickel
• Minimum of 10 insertions of any wire gauge combinations (22 to 24 AWG)
• Operating Temperature: -40ºC ~ 60ºC
• Storage Temperature: -40ºC ~ 125ºC
• Installation Temperature: -20ºC ~ 40ºC

CERTIFICATIONS AND COMPLIANCES

ISO 11801Generic Cabling for Customer Premises

ANSI/TIA-968-ATechnical Requirements for Connection of Terminal Equipment to the Telephone Network

ROHSDirective on Restriction of Hazardous Substances

TIA/EIA-568-C.2Balanced Twisted-Pair Telecommunications Cabling and Components Standards

FCC PART 68Connection of Terminal Equipment to the Public Switched Telephone Network

IEC 60603-7Connectors for Electronic EquipmentUL94Tests for Flammability of Plastic Material for Parts in Devices and Appliances.
